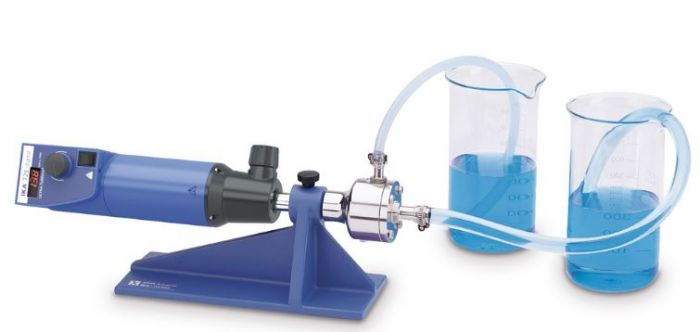

IKA UTL25 Inline Utra turrax digitaal

Art.Nr.

L030006856

Inline Ultra Turrax voor een continue proces met een snelheid van 4,4 tot 11.6 l/min
Bestaande uit: IKA Ultra Turrax T25 Digitaal
Doorstroom kamer DK25.11
Standaard AD25 en schacht type: S 25 KV - 25 G-IL
Gewicht 3.8 kg
Afmetingen (bxhxd): 450 x 120 x 100 mm

Bekijk alle specificaties

Download de PDF

Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

UTL 25 digital Inline ULTRA-TURRAX®

For circulation or flow-through processing in the laboratory.

Simple, compact and sturdy modular design

Sterilizable, autoclave-compatible

Table-top or stand-supported device, low space requirement

Easy disassembly

Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)

For air-free, sterile, and inline suspension, emulsifying and deagglomeration

For vacuum or pressurized operation (up to 6 bar)If the DK 25.11 is used, air induction is also prevented in batch operation

Not self-priming

A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed

Not suitable for continuous operation or cyclical continuous operation

Scope of delivery

T 25 digital ULTRA-TURRAX®

DK 25.11 flow chamber

AD 25 mounting support

S 25 KV - 25 G-IL dispersing tool
