IKA S50N - G45M schacht voor ultra-turrax T50
Art.Nr.
L038003300
IKA S50N - G45M schacht voor ultra-turrax T50
Art.Nr.
L038003300
volume 0.5 tot 15 liter
diameter stator 45 mm
lengte 290 mm
materiaal PTFE, AISI 316L
excl. BTW
3.531,-
3 906,-
(Alle prijzen zijn exclusief BTW)
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |

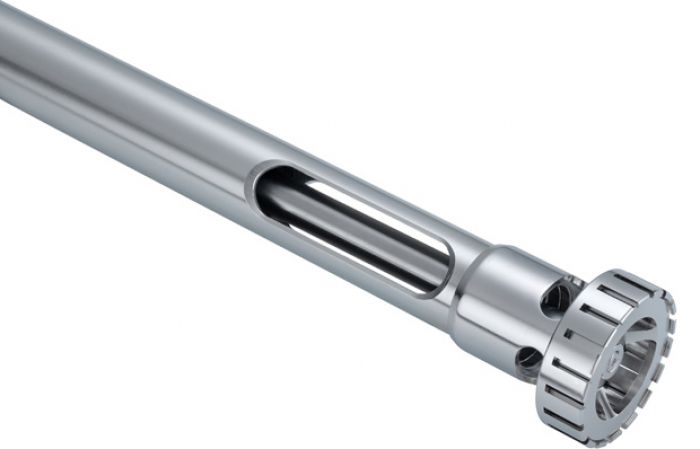

S 50 N - G 45 M Dispersing element
- Suitable for dispersing instrument T 50 digital
- Working range: 0,5 - 15 l
- Stator diameter: 45 mm
- Immersion depth: 70 - 250 mm
- Materials in contact with medium: PTFE, AISI 316L
- Suitable for solvents: yes
- Max. temperature: 180 °C
- Sterilization methods: all methods
Technical data
| Volume range min. (H2O) | 0.5 l |
| Volume range max. (H2O) | 15 l |
| Stator diameter | 45 mm |
| Rotor diameter | 40.5 mm |
| Gap between rotor and stator | 0.25 mm |
| Circumferential speed max. | 21.2 m/s |
| Immersion depth min. | 70 mm |
| Immersion depth max. | 250 mm |
| Shaft length | 290 mm |
| Material in contact with medium | PTFE, AISI 316L |
| pH min. | 2 |
| pH max. | 13 |
| Suitable for solvents | yes |
| Suitable for abrasive substances | yes |
| Working temperature max. | 180 °C |
| Sterilization methods | all methods |
| Ultimate fineness, suspensions min. | 25 µm |
| Ultimate fineness, suspensions max. | 50 µm |
| Ultimate fineness, emulsions min. | 5 µm |
| Ultimate fineness, emulsions max. | 20 µm |
