IKA S25KV - 25G schacht voor ultra-turrax T25

Specificaties

Specificaties

Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

IKA S25KV - 25G schacht voor ultra-turrax T25

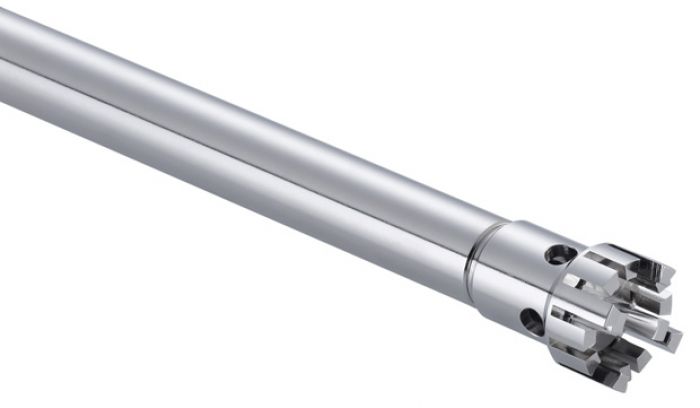

S 25 KV - 25 G Dispersing tool

Suitable for dispersing instrument T 25 digital
Working range: 50 - 2000 ml
Stator diameter: 25 mm
Immersion depth: 40 - 225 mm
Materials in contact with medium: FFPM / SIC, AISI 316L
Suitable for solvents
Max. temperature: 220 °C
Sterilization methods: wet chemical

Technical Data

Volume range (H2O)	0.05 - 2 l
Stator diameter	25 mm
Rotor diameter	17 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	22.2 m/s
Immersion depth	40 - 225 mm
Shaft length	270 mm
Material in contact with medium	FFPM / SIC, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	220 °C
Sterilization methods	all methods
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	15 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm
