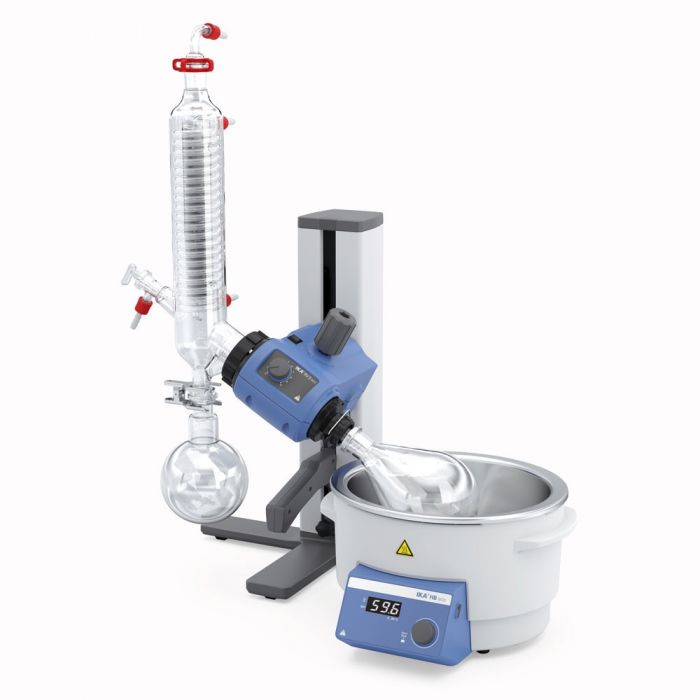

IKA RV3 V rotatiefilmverdamper ongecoat glaswerk

RV 3 V

The rotary evaporator RV 3 is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1600 cm² cooling surface.

heating bath with 4 l volume for up to 99 °C

water heating bath with digital temperature display and carrying handles

mechanical lift end-point safety stop

locking mechanism: red indicator shows unlocked position of the vapor tube

manual lift for precise positioning of the glassware

adjustable immersion anglesingle-handed manual lift handling, suitable for left and right-handed operators

stepless speed setting with dial control and speed display

speed range: 20-300rpm

low device voltage (24V) ensures user safety

flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks

high-efficiency condenser with 1600 cm² cooling surface - low space requirements

compatible with the entire range of IKA RV 10 glassware

Scope of delivery

RV 3 eco drive

HB eco S099

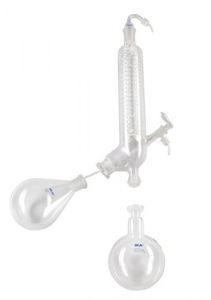

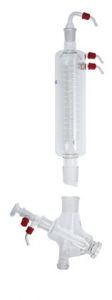

RV 10.1 Glassware vertical

RV 10.70 Vapor tube (NS 29/32)

RV 10.8001 Seal
