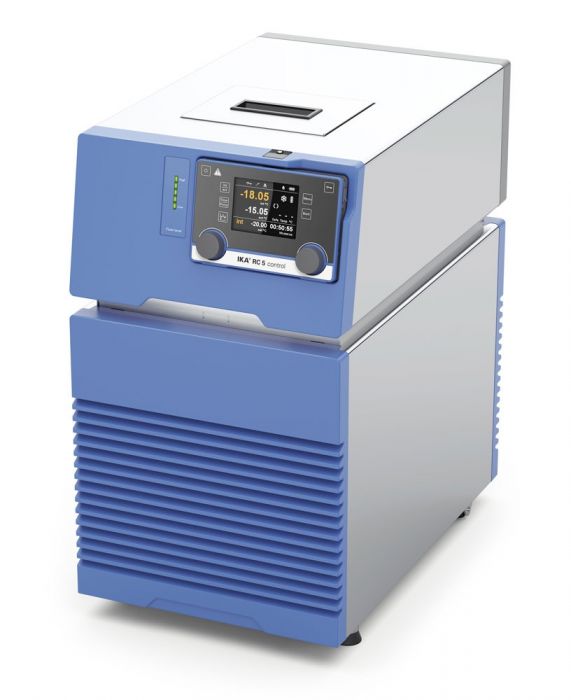

IKA RC5 Control koelthermostaat -30°C bad volume 7 liter

IKA RC5 Control koelthermostaat -30°C bad volume 7 liter

Technical data

• Flow rate max. (0 bar back pressure): 31l/min
• Pressure pump (suction side) (0 liter flow): 0.45bar
• Working temperature max. : Room temp.°C
• Temperature stability DIN 12876: 0.1±K
• Pump pressure max. (0 liters discharge flow): 0.61bar
• Display resolution: 0.01K
• Depth: 490mm
• Width: 310mm
• Permissible ambient temperature max.: 32°C
• Power input: 1100W
• Working temperature min. : -30°C
• Operating temperature min.: -30°C
• Cooling agent quantity: 90g
• Cooling agent pressure max.: 21bar
• Height: 546mm
• Weight: 37.8kg
• Cooling agent: R290
• Filling volume min.: 5.0l
• Voltage: 230/100 - 115V
• Operating temperature max. (with external heating): 40°C
• Filling volume max.: 7.0l
• Cooling capacity (@20°C): 1400W
• Permissible ON time: 100%
• Frequency: 50/60Hz
• Warning function excess temperature : yes
• Warning function insufficient temperature : no
• Pump type: pressure pump
• Technical data complies with the standard: DIN 12876
• Warning function optical : yes
• Display for operation with ext. sensor: yes
• Protection class according to DIN EN 60529: IP 21
• USB interface: yes
• Temperature display: yes
• Connection for ext. temperature sensor: PT 100
• Temperature control: PT 100
• Working temperature sensor: PT 100
• Pump connection: M16x1
• Appliance type: Recirculating Chiller
• Permissible ambient temperature min.: 5°C
• Permissible relative humidity: 80%
• Calibration option: yes
• Pump capacity adjustable : yes
• Working temperature display: TFT
• Warning function acoustic : yes
• Sub-level protection: yes
• RS 232 interface: yes
