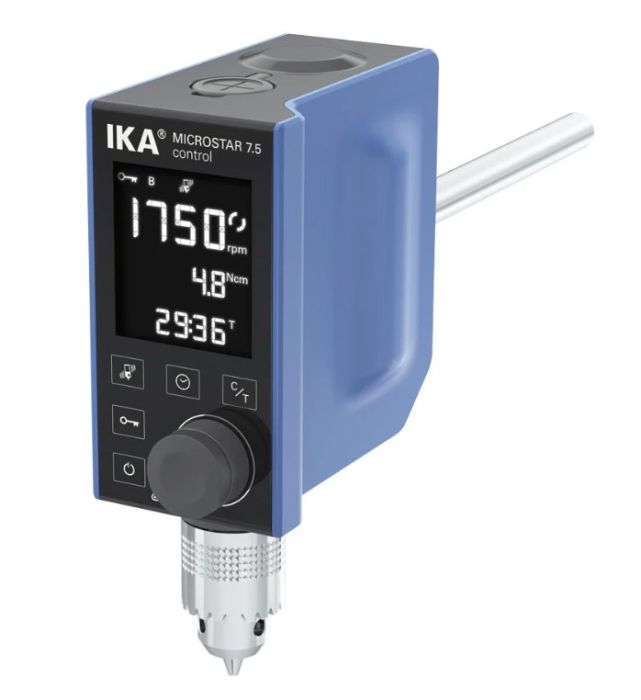

IKA MICROSTAR 7.5 control bovenroerder 2 liter 750 mPas

Specificaties

Specificaties
Merk	IKA
Viscositeit - mPas	750
Volume	2 liter

Productbeschrijving

IKA Microstar 7.5 control bovenroerder 2 liter 750 mPas;

The first compact and high-performance overhead stirrers with lifetime warranty. Suitable for low viscosities (750 - 8000mPas) and volumes (2-25l). A microprocessor-controlled operation keeps the speed range constant, depending on the model from 0/30 - 500/2000 rpm. Actual and set speed can be adjusted continously. The speed will remain constant even with changing viscosities. A torque trend measurement will show any changes in viscosities of the sample. An electronic safety circuit as well as a state-of-the-art vibration detection guarantees the stirrer to stop when an anomaly is detected. Operating and documenting all parameters, as well as updating the latest firmware are possible by the USB interface.

Chemically resitant housing
Display with glass surface
Clear LCD display
Adjustable vibration detection
PT 1000 temperature sensor connector
Lock key
Timer and counter function
Compact footprint
USB interface

Technical data

Stirring quantity max. per stirring position (H2O)	2 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LCD
Speed min.	30 rpm
Speed min.	0/30 rpm
Speed max.	2000 rpm
Reversible direction of rotation	no
Intermittent operation	no
Viscosity max.	750 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	7.5 Ncm
Torque max. at stirring shaft at 60 1/min (overload)	7.5 Ncm
Torque max. at stirring shaft at 100 1/min	7.5 Ncm
Torque max. at stirring shaft at 1.000 1/min	7.5 Ncm
torque I max.	7.5 Ncm
Speed range I (50 Hz)	30 - 2000 rpm
Speed range I (60 Hz)	30 - 2000 rpm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Chuck range min. diameter	0.5 mm
Chuck range max. diameter	8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through - when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Torque display	yes
Nominal torque	0.075 Nm
Torque measurement	trend
deviation of torque measurement I	3 ±Ncm
Timer	yes
Timer display	LCD
Time setting range	0 - 6000 min
Temperature measuring range min.	-10 °C
Temperature measuring range max.	350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
housing material	alu-cast coating / thermoplastic polymer
clean room qualified	no
explosion proofed	no
communication distance (depend onbuilding) max.	150 m
Dimensions (W x H x D)	60 x 123 x 110 mm
Weight	1.18 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
RS 232 interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	32 W
DC Voltage	24 V=
Current consumption	1300 mA
