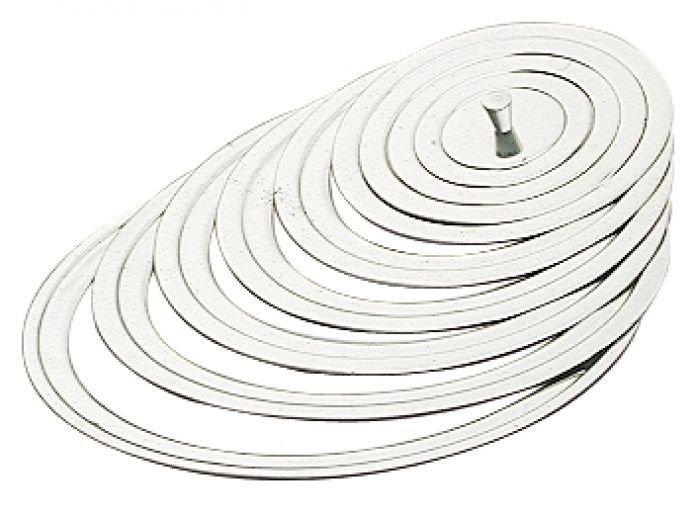

IKA H240 ringenset voor HBR4 water/oliebad
Art.Nr.
L032858700
IKA H240 ringenset voor HBR4 water/oliebad
Art.Nr.
L032858700
Geschikt voor water/olibad HB4 basic, HBR4 digital, HBR4 control & HBR 4 LR control
excl. BTW
592,-
675,-
(Alle prijzen zijn exclusief BTW)
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
IKA water/oliebad
- HBR 4 digital water/oliebad tot 200°C
- inhoud 4 liter
- met ingebouwde magneetroerder 150 - 800 rpm
- intern 200 x 160 mm (diameter x hoogte)
Meer informatie van de IKA website
The digital heating bath is characterized by the following features:
- Cylindrical bath shape
- High-grade recyclable materials
- The heating elements are situated underneath the bath vessel
- Either low viscosity oil or water can be used as the heat transfer fluid
- Useful volume of 4 liters
- Heat output 1,000 W
- Adjustable safety temperature limiter acc. to DIN 12876
- The safety elements are checked when the unit is switched on
- Double jacket and carrying handles provide protection against burns
- Digital display presents rated, actual and safety temperature as well as speed
- Fuzzy logic control
- Integrated magnetic stirring drive to circulate the tempering fluid, which contributes to improved heat distribution
Technical data
| Heat output | 1000 W |
| Heating temperature range | room temp. - 200 °C |
| Heat control | stepless |
| Controller oscillation (3 l water / 90 °C) | 1 ±K |
| Controller oscillation (3l Silicone oil / 50mPas / 150°C) | 2 ±K |
| Speed display | LCD |
| Speed control | stepless |
| Speed range | 150 - 800 rpm |
| Motor rating input | 5 W |
| Motor rating output | 1 W |
| Bath volume max. | 4 l |
| Filling point min. | 20 mm |
| Material in contact with medium | stainless steel 1.4301 |
| Adjustable safety circuit min. | 50 °C |
| Adjustable safety circuit max. | 210 °C |
| Safety class DIN 12877 | II |
| Outer diameter | 250 mm |
| Inner diameter | 200 mm |
| Outer height | 250 mm |
| Inner height | 160 mm |
| Dimensions (W x H x D) | 340 x 250 x 340 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature max. | 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230/115/100 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
