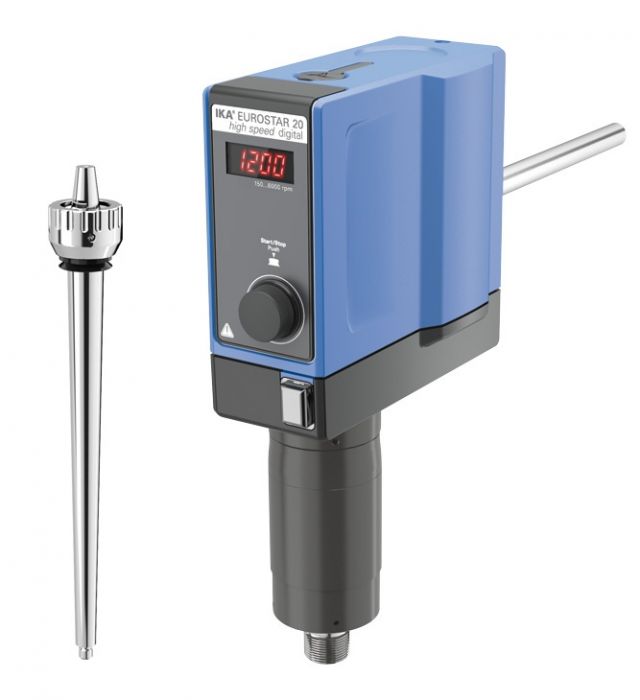

IKA EUROSTAR 20 HS digital bovenroerder 20 liter 10000 mPas
Art.Nr.
L034028600
Met digitaal display
Maximaal 20 liter (water)
Viscositeit maximaal 10.000 mPas
Traploze toerentalbereik 0 tot 6.000 rpm
Doorsteekbare roerwerk assen
Afmetingen (lxbxh) 86 x 325 x 208 mm
Gewicht 5,34 kg

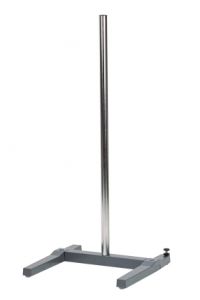

Statief en roerbladen optioneel
Maximaal 20 liter (water)
Viscositeit maximaal 10.000 mPas
Traploze toerentalbereik 0 tot 6.000 rpm
Doorsteekbare roerwerk assen
Afmetingen (lxbxh) 86 x 325 x 208 mm
Gewicht 5,34 kg
Statief en roerbladen optioneel
excl. BTW
2.223,-
2 537,-
(Alle prijzen zijn exclusief BTW)
- IKA EUROSTAR power control-visc 6000
Merk | IKA |
---|---|
Viscositeit - mPas | 10.000 |
Volume | 20 liter |
IKA EUROSTAR 20 high speed digitaal bovenroerder 20 liter 10000 mPas
- KA biedt de ideale range aan bovenroerders voormengen & roerenin uw laboratorium - voor lagere tot hoge viscositeit
- Deze mechanische roerders roeren moeitelooshoeveelheden tot maximaal 200 liter
- IKA lab roerdersonderscheiden zich door hun onmisbare functies waaronder:
- Afneembare afstandsbediening vooreenvoudige bediening op afstand
- Elektronisch veiligheidscircuit,digitaal display, twee toerentalbereiken en een controleoptie via de software labworldsoft
- Een breed spectrum van toebehoren en roergereedschappenis de sleutel tot een succesvolle menging
- Functionaliteit, veiligheid enlange levensduur zijn de belangrijkste doelstellingen in de ontwikkeling vande IKA producten
- Vind onderstaand de idealeroerder voor uw toepassing
Meer informatie van IKA website
High speed laboratory stirrer designed for intensive stirring tasks for quantities up to 20 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. The included precision shaft is 280 mm long and has a maximum immersion depth of 220 mm.
- Digital speed display
- Infinitely adjustable speed
- Cone seat for precision shaft
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
Technical data
Stirring quantity max. per stirring position (H2O) | 20 l |
Motor rating input | 176 W |
Motor rating output | 125 W |
Motor principle | Brushless DC |
Speed display | 7 segment LED |
Speed range | 0/150 - 6000 rpm |
Reversible direction of rotation | no |
Intermittent operation | no |
Viscosity max. | 10000 mPas |
Output max. at stirring shaft | 125 W |
Permissible ON time | 100 % |
Torque max. at stirring shaft | 20 Ncm |
Speed control | stepless |
Setting accuracy speed | 1 ±rpm |
Deviation of speed measurement n > 300rpm | 1 ±% |
Deviation of speed measurement n < 300rpm | 3 ±rpm |
Stirring element fastening | special output shaft |
Hollow shaft (push-through - when stopped) | no |
Fastening on stand | extension arm |
Extension arm diameter | 16 mm |
Extension arm length | 220 mm |
Nominal torque | 0.2 Nm |
Timer | no |
housing material | alu-cast coating / thermoplastic polymer |
clean room qualified | no |
explosion proofed | no |
Dimensions (W x H x D) | 86 x 325 x 208 mm |
Weight | 5.3 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 40 |
USB interface | no |
RS 232 interface | no |
Analog output | no |
Voltage | 230 / 115 / 100 V |
Frequency | 50/60 Hz |
Power input | 176 W |
